A state-of-the-art portable or fixed measurement system with an integrated spectrometer and pixel calibrated camera engineered to evaluate surface illumination in mobile or fixed environments. Calibration recommended annually.

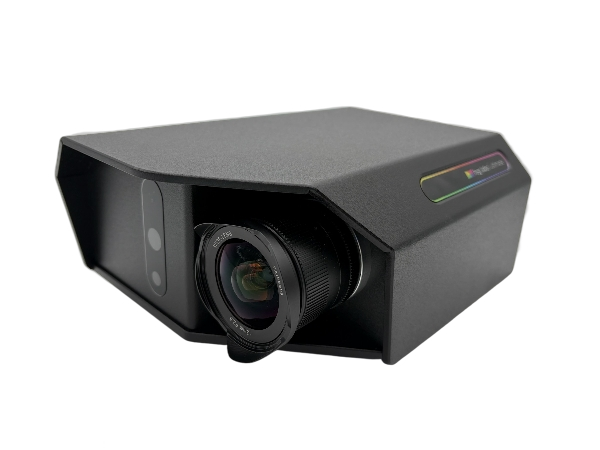

The HSG Labs 4P is a surface measurement system based on the concept of the Ultimate v3.5 hardware, combining spectral and spatial analysis for calibration and evaluation of RGB laser projectors and LED display systems. This integrated device incorporates a high-resolution spectroradiometer and 20-megapixel imaging sensor, enabling pixel-level measurement analysis and spectral characterization in a single unit.
A full spectral radiometric calibration of the entire sensor chain, giving very high accuracy for all sensors (single point spectrometer or camera full image analysis).
Equipped with a high-performance CPU, the 4P processes large datasets in real time, making it suitable for research, production calibration, and quality assurance workflows. With web UI, designed for field and lab deployment, it supports Ethernet connectivity and integrates easily into automated systems through its open API and SDK support.
Key Functionality
- Portable with integrated battery
- One point and 2D matrix spectral and luminance measurements with Spectro colorimeter and 20Mpx camera
- Single shot SD and HDR contrast measurement
- Programmable for fully automatic operations
- Remote API, SNMP integration for 3rd party support
- Specific to Digital Cinema
- Macbeth IRC Color Generation
- DLP convergence measurements
- Lens control (focus, zoom and position alignment)
- Light source control (Xenon, RB, RGB)
- Audio validation and analysis (ATMOS)
| System Specifications | |
|---|---|
| Processor | Linux Based |
| WiFi | Wifi 802.11ac, 2.4GHz, 5GHz |
| Input Power | 230 / 110V |
| Lower Power Input | 12v 3A |
| Battery | Optional Internal Battery with 4hrs of continuous runtime Min 46Wh |
| Spectrometer Sensor | |
|---|---|
| Spectral Range | 380 to 780nm range |
| Spectral Bandwidth | FWHM 2nm bandwidth spectrometer (1nm HiRes version available) |
| Measuring Aperature | 2° FOV |
| Sensor Pixels | 3648 pixels |
| Pixel Resolution | 0.15nm/px |
| Color Accuracy | Illuminant A - ± 0.0015 for CIE 1931 – xy |
| Repeatability | ± <1% |
| Luminance Range | from 0.005 up to 200,000 cd/m² |
| Luminance Accuracy | ± 1% |
| Measuring Values | cd/m² or fL, Y, CCT/xy/u’v’/uv/wavelength peak |
| Shutter | Mechanical shutter |
| Mechanical ND filter | |
| Calibration* | NIST; CIE Illuminant A and custom Illuminant |
| *Calibration recommended every 1 year, dependent on requirements | |
| Camera Specifications | |
|---|---|
| Color accuracy** | ± 0.01 for CIE 1931 xy |
| Luminance Accuracy* | ± 3% |
| Throw Ratio | minimum of 0.8:1 |
| Imaging/Pixel Array | 5496 x 3672 pixels |
| CCD size | 13.2 x 8.8 mm |
| Total Pixels | 20.18 million |
| Pixel size | 2.4 x 2.4 microns square |
| Shutter | Rolling electric |
| Exposure | 32 μs to 2000 seconds |
| A/D Converter | 12 bits |
| QE Peak | 84% |
| Read Noise | 1.6e |
| Full Well | 15 ke |
| ** For A illuminants and against NIST Luminance standard | |
| Mechanical Specifications | |
|---|---|
| Product Size (cm) | 29 x 19 x 11 |
| Product Weight (kg) | 2.2 without battery |
| Packed Size (cm) | tbc |
| Packed Weight (kg) | tbc |
| Mounting Options | 1x ¼" UNC tripod mount |
| Noise | Noise: xx dBc |
| For indoor usage only | |
| Operating temperature non-condensing 5 °C to 35 °C (41 °F to 95 °F) | |
| Storage Temperature : -40 ~ 75 °C | |
| Lens Options | |
|---|---|
| Short - SR | 0.8:1 - 1.5:1 |
| Starndard - ST | 1.35:1 - 2.9:1 |
| Extended - Ex | 2.6:1 – 3.5:1 |
*This device does not reach the tolerance levels required for Digital Cinema Calibration and should only be used as a checking tool. For light and sound calibration, use devices designed for calibration, like the HSG Labs Spectro or those with professional microphone calibration systems.
